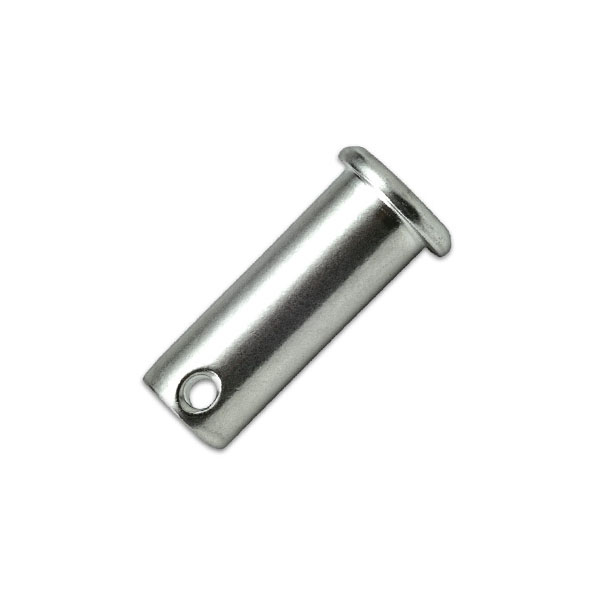

Clevis Pin
Clevis Pin
| Ø Pin | D | L1 | L2 | L3 | SW | Break Load | Weight | ||
| Inch | mm | mm | mm | mm | mm | mm | Kg | Kg | |
3/8" |
9.5 |
18.0 |
7.2 |
19.5 ± 0.75 |
9.8 |
16 |
3800 |
0.041 |
|
7/16" |
11.1 |
18.0 |
7.2 |
23.5 ± 0.75 |
9.8 |
16 |
4900 |
0.048 |
|
7/16" |
11.1 |
18.0 |
7.2 |
24.5 ± 0.75 |
9.8 |
16 |
4900 |
0.049 |
|
1/2" |
12.7 |
18.0 |
7.2 |
24.5 ± 0.75 |
9.8 |
16 |
7300 |
0.055 |
|
5/8" |
15.9 |
24.8 |
7.3 |
30.0 ± 0.75 |
9.8 |
22 |
10200 |
0.104 |
|
5/8" |
15.9 |
24.8 |
7.3 |
35.5 ± 0.75 |
9.8 |
22 |
10200 |
0.112 |
|
3/4" |
19.1 |
24.8 |
7.3 |
34.0 ± 0.75 |
9.8 |
22 |
14000 |
0.134 |
|
3/4" |
19.1 |
24.8 |
7.3 |
36.0 ± 0.75 |
9.8 |
22 |
14000 |
0.139 |
|
7/8" |
22.2 |
29.8 |
7.3 |
36.0 ± 0.75 |
9.8 |
27 |
17800 |
0.197 |
|
1" |
25.4 |
34.8 |
7.3 |
44.5 ± 0.75 |
9.8 |
32 |
22500 |
0.296 |
|
1 1/8" |
28.6 |
37.8 |
7.3 |
46.5 ± 0.75 |
9.8 |
32 |
29500 |
0.371 |
|
1 1/8" |
28.6 |
37.8 |
7.3 |
48.5 ± 0.75 |
9.8 |
32 |
29500 |
0.379 |
|
1 1/8" |
28.6 |
37.8 |
7.3 |
59.5 ± 0.75 |
9.8 |
32 |
29500 |
0.437 |
|
1 1/4" |
31.8 |
39.8 |
7.7 |
57.0 ± 1.0 |
10.3 |
36 |
43100 |
0.519 |
|
1 1/4" |
31.8 |
39.8 |
7.7 |
63.0 ± 1.0 |
10.3 |
36 |
43100 |
0.557 |
|
1 1/4" |
31.8 |
39.8 |
7.7 |
68.0 ± 1.0 |
10.3 |
36 |
43100 |
0.588 |
|
1 3/8" |
34.9 |
44.8 |
7.7 |
62.5 ± 1.0 |
10.3 |
41 |
49600 |
0.678 |
|
1 9/16" |
39.7 |
54.0 |
9.7 |
64.5 ± 1.5 |
13.0 |
50 |
63700 |
1004 |
|
1 3/4" |
44.5 |
54.0 |
9.7 |
76.5 ± 1.5 |
13.0 |
50 |
81700 |
1294 |
|
1 3/4" |
44.5 |
54.0 |
9.7 |
82.5 ± 1.5 |
13.0 |
50 |
81700 |
1367 |
|
1 7/8" |
47.6 |
59.0 |
9.7 |
76.5 ± 1.5 |
13.0 |
55 |
92600 |
1502 |
|
2 1/8" |
54.0 |
64.8 |
9.7 |
86.5 ± 1.5 |
13.0 |
60 |
106200 |
2114 |
|
2 1/4" |
57.2 |
69.8 |
9.7 |
86.5 ± 1.5 |
13.0 |
65 |
119800 |
2391 |
|
2 7/16" |
61.9 |
74.8 |
10.5 |
96.5 ± 2.0 |
14.0 |
70 |
141600 |
3088 |
|
2 1/2" |
63.5 |
74.8 |
10.5 |
103.0 ± 2.0 |
14.0 |
70 |
185100 |
3374 |
|
2 13/16" |
71.4 |
84.8 |
10.5 |
113.0 ± 2.0 |
14.0 |
80 |
255900 |
4605 |
|
3" |
76.2 |
91.2 |
13.0 |
118.5 ± 2.0 |
17.3 |
85 |
294000 |
5760 |
|

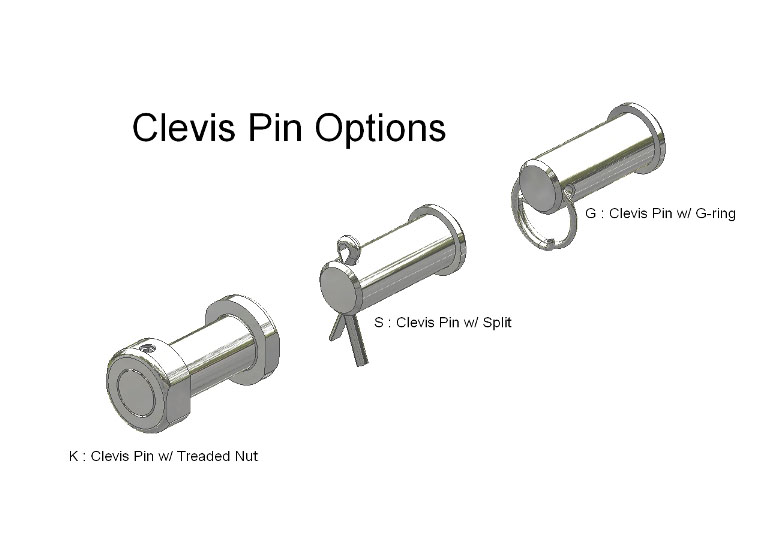

S=Clevis Pin w/Split, K=Clevis Pin Treaded w/Nut, G=Clevis Pin w/G-ring |
|||||||||
