Clevis Pin

Product Features

• Manufactured from Stainless Steel Grade 316
• Excellent for lifting applications where a high level of corrosion resistance is required Factor of Safety
• Available with 2 pin types - E Type Safety Pin with Standard Nut (E Type) or Nylok Nut (E Type-NY)
• Special design of bolt ensures the nut is positioned correctly allowing sufficient room for the cotter pin

Quality Features

• Every shackle is proof tested and certified at our manufacturing facility
• All shackles are manufactured in accordance with the Machine Directive 2006/42/EC
• High quality finish and excellent polish
• Manufactured using the latest technology in electrical upset forging

Typical Applications

• Water utility installations & other corrosive facilities
• Pump chains and pump lifting
• Chemical installations - Chlorine plants etc
• General lifting in off-shore applications
• General lifting and tethering in leisure marine applications
• General lifting purposes

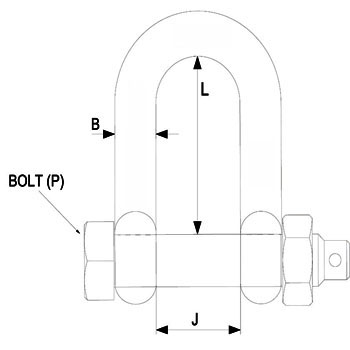

Dimensions & WLL					Pin Styles & Product Numbers		Nominal Weight Per Shackle
WLL	Pin Dia (P)	Body Dia (B)	Jaw Gap (J)	Inside L	E Type Pin	E Type Pin c/w Nylok
350kgs	M6 Bolt	6.0	13.0	25.0	ED6M6	ED6M6-NY	48g
500kgs	M8 Bolt	8.0	16.0	32.0	ED8M8	ED8M8-NY	75g
800kgs	M10 Bolt	9.5	19.0	38.0	ED10M10	ED10M10-NY	136g
1000kgs	M12 Bolt	11.0	22.0	44.0	ED11M12	ED11M12-NY	212g
1250kgs	M12 Bolt	12.7	26.0	52.0	ED12M12	ED12M12-NY	331g
1800kgs	M16 Bolt	14.3	29.0	58.0	ED14M16	ED14M16-NY	585g
2800 kgs	M20 Bolt	16.0	32.0	64.0	ED16M20	ED16M20-NY	760g
3300 kgs	M22 Bolt	19.0	38.0	76.0	ED19M22	ED19M22-NY	1180g
4500 kgs	M24 Bolt	22.0	44.0	88.0	ED22M24	ED22M24-NY	1750g
5000kgs	M27 Bolt	25.4	50.0	100.0	ED25M27	ED25M27-NY	2600g
